StructureExpert

Dedicated Structure Verification in 30 Seconds

StructureExpert facts

  • Dedicated Software
  • Auto-illumination
  • Auto-focus
  • Auto-calibration

Designed for both the production and lab environments, StructureExpert is an all-in-one solution dedicated to a particular application. Challenging conventional technology, StructureExpert does away with conventional and time-consuming positioning and adjustments, enabling reliable verification of a specimen within 30 seconds and delivering critical quality control data in line with the production line.

Request a quote

Fast – Short Time to Verification

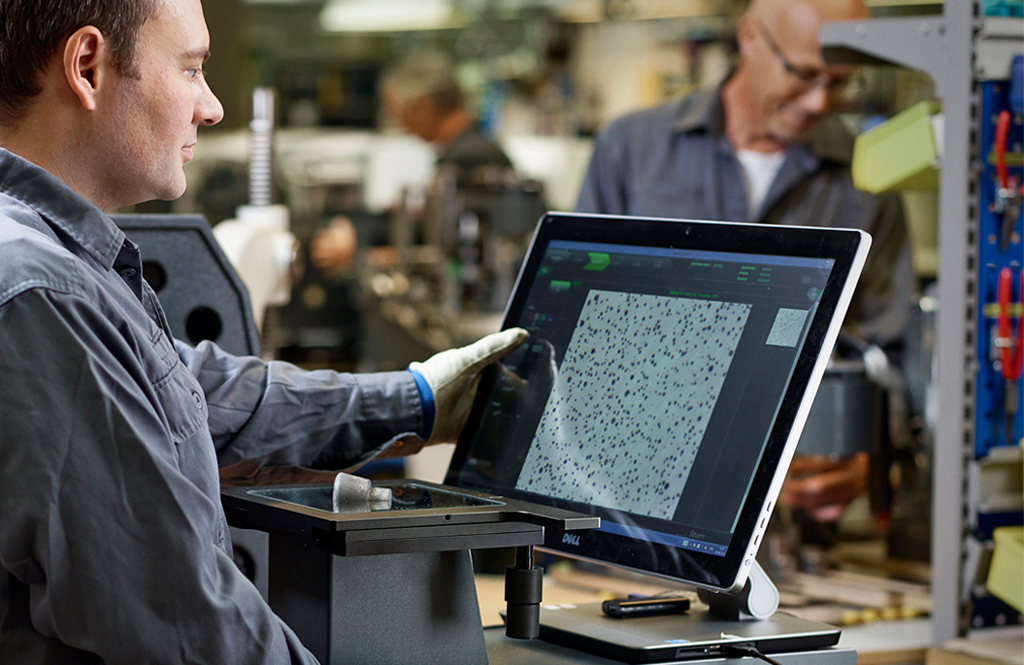

The user can verify a prepared specimen in just 30 seconds, based on a magnified, crystal clear and high-resolution digital image. Save even more time by locating the StructureExpert close to your QC function – if necessary, right beside the production line.

Robust – Long Lifetime

StructureExpert can be used in virtually any production environment. The optical equipment is completely protected by a robust and dustproof housing, allowing you to save time by performing verifications right where they are needed.

Easy and Reliable – Minimum Training

A straightforward user interface and an automated step-by-step process mean rapid familiarization and consistent repeatability.

Discover more.

Play

KEY FEATURES THAT ENSURE FAST STRUCTURE VERIFICATION

  • StructureExpert Dedicated software

    Dedicated Software

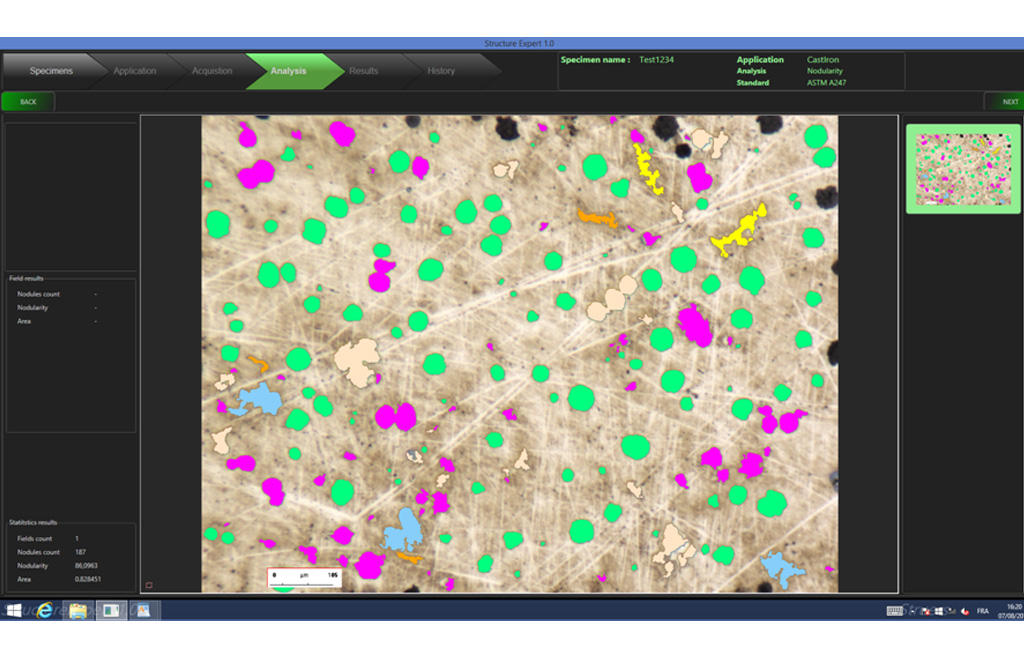

    Dedicated software modules provide an intuitive workflow, enabling correct image acquisition without any special operator training.

    Dedicated Software
  • StructureExpert Inverted optical system

    Inverted Optical System

    The inverted optical system maintains a constant distance between the sample and the camera, providing a constantly sharp image without the need for continuous height adjustments and calibrations.

    Inverted Optical System
  • StructureExpert Built-in camera with autofocus zoom lens

    Built-in Camera with Autofocus Zoom Lens

    The built-in digital camera and a motorized autofocus zoom lens give maximum flexibility in selecting a perfect field of view.

    Built-in Camera with Autofocus Zoom Lens
  • StructureExpert Auto illumination

    Auto-illumination

    Specimen illumination and contrast is automatically adjusted to ensure perfect conditions for the given application and the surface conditions detected by the system. This eliminates the need for tedious light and filter adjustments and significantly simplifies the analysis.

    Auto-illumination
  • StructureExpert Autofocus

    Auto-focus

    The zoom system offers the operator maximum flexibility in selecting a perfect field of view for all measurements without the need to select and switch between objective lenses. Automatic focus on the sample surface eliminates the need for manual adjustments. This means unmatched ease of use and optimized repeatability.

    Auto-focus
  • StructureExpert Auto calibration

    Auto-calibration

    Contrary to conventional manual verification technology, the sample surface is always the same distance from the camera. This does away with time-consuming, continuous height adjustments and calibrations, thus significantly reducing operator time, while maximizing the image quality.

    Auto-calibration

Facts

Model types

StructureExpert

StructureExpert product image

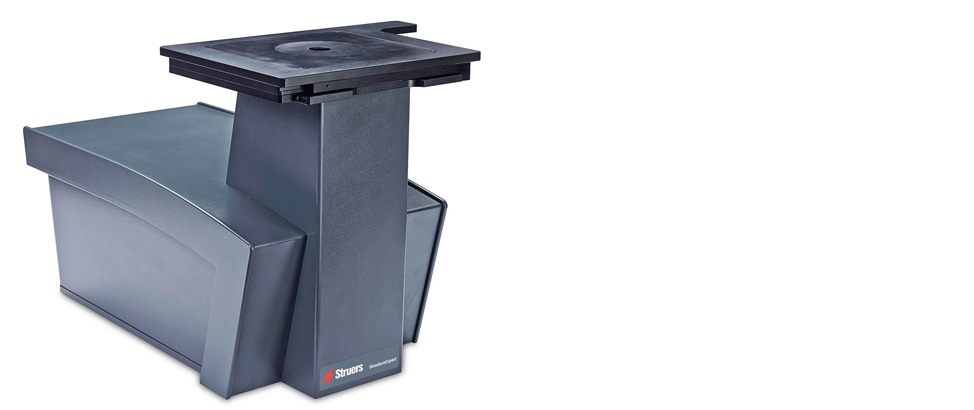

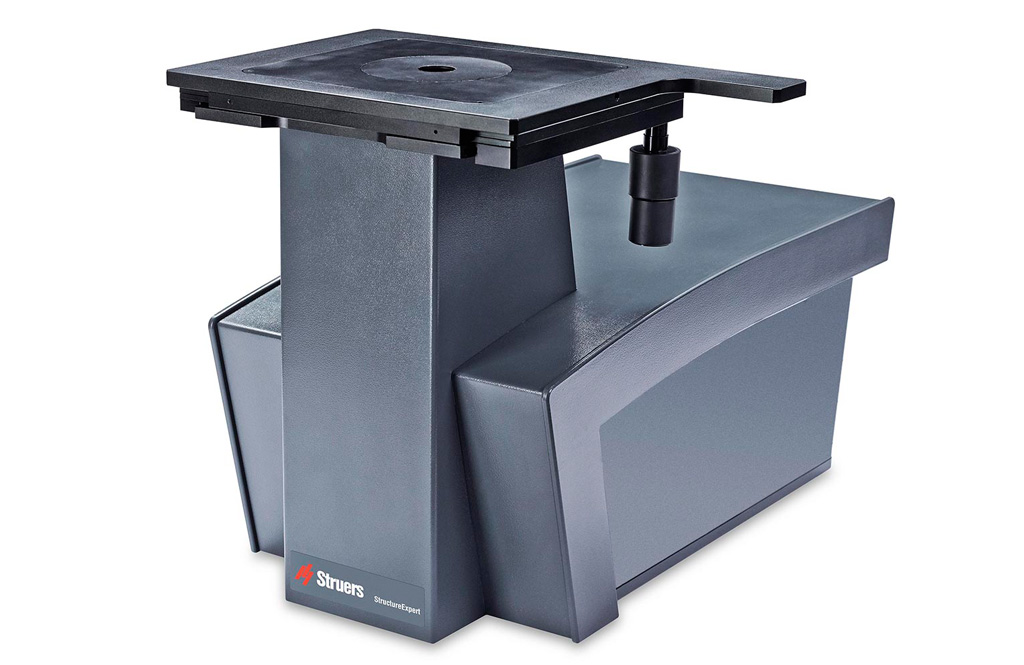

Dedicated imaging system for verification of microstructures and dimensional measurements. Based on a workflow oriented user interface for easy and repeatable operation. Includes software for basic manual measurements and reporting. Dedicated application oriented modules are ordered separately. Consists of compact housing, a LED lighting system, and motorized zoom camera.
With auto-focus and automatic illumination adjustment. Field of view 6.24 mm to 294 μm, equivalent to 25x - 500x magnification. Measurement resolution 0.11 μm. Includes manual xy-stage capable of supporting 3.0 kg, e.g. large specimen holders. Includes calibration plate and necessary cables. Accredited certificate for calibration plate is optional. PC and monitor are required.

Struers’ equipment is in conformity with the provisions of the applicable international directives and their appurtenant standards.
Struers’ products are subject to constant product development. Therefore, we reserve the right to introduce changes to our products without notice.

Technical Data

StructureExpert Technical Data Sheet

Struers Technical Data Sheets are designed to help you make the best choice of equipment for your particular purpose. You can find important information such as capacity and performance specifications, dimensions, weight, electrical data, noise levels, ambient conditions, and safety. In many cases you can also obtain an overview of accessories offering higher capacity and performance.

Download Technical Data Sheet
Technical Data Sheet
